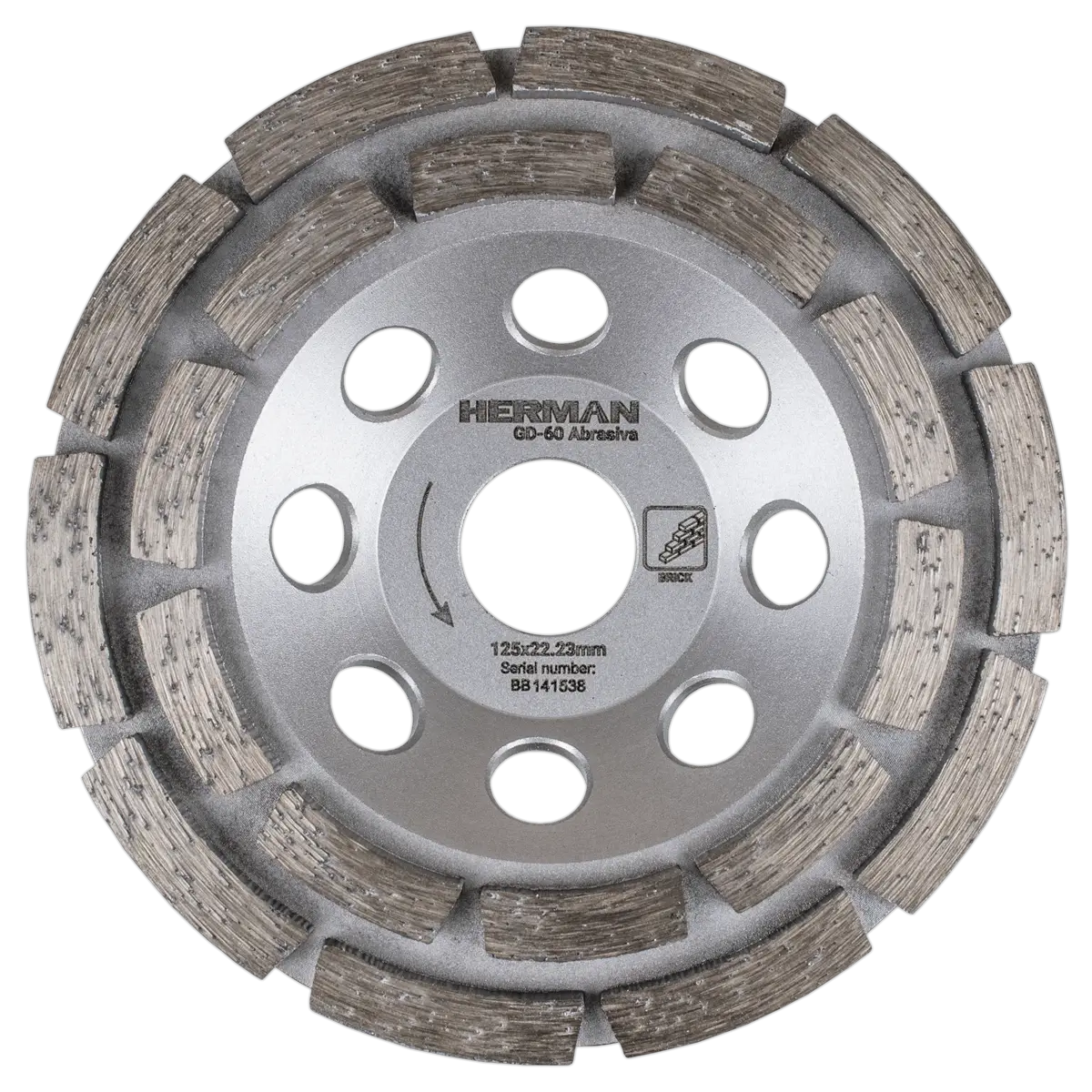

Diamond grinding wheel HERMAN GD-60 Abrasiva For rough grinding of masonry

This diamond grinding cup wheel for concrete delivers aggressive material removal for surface leveling, edge trimming, and corner grinding on rough substrates. It features a double-row layout with 6 mm thick diamond segments, which provide a wide contact area and faster grinding action.

We use synthetic diamond grains embedded in a hard bonding matrix, ensuring consistent performance and extended tool life. These segments grind effectively through concrete and other abrasive construction materials.

To ensure durability and safety, the segments are sintered and pressed under high pressure, forming a secure mechanical bond with the steel body. This results in smooth, controlled grinding without risk of segment detachment.

Moreover, the wheel includes large ventilation openings that improve airflow during operation. This airflow helps remove dust and cool the disc in real time, minimizing overheating and increasing operator comfort.

For indoor use, it’s highly recommended to pair the wheel with an industrial dust extraction system, such as the TQ-10 unit connected to a vacuum. This setup improves both visibility and safety by significantly reducing airborne particles.

Key features and benefits

• Double-row segment design for aggressive and controlled grinding

• 6 mm thick diamond segments provide extended disc life

• High synthetic diamond concentration ensures fast stock removal

• Pressed and sintered segment connection for maximum safety

• Large ventilation holes enhance cooling and dust removal

• Compatible with vacuum extraction systems for indoor use

• Ideal for concrete, masonry, and other abrasive building materials
