Cougartron FL20 Fluid Feed System 110/230V – Integrated Solution for Efficient Weld Cleaning

The Cougartron FL20 Fluid Feed System 110/230V, offered by RAM SVEIS OG BEMANNING AS, is a fully integrated solution designed to streamline your weld cleaning process. This system combines the machine, fluid pump, and container into one efficient unit, saving time and effort. With precise fluid control, you no longer need to dip the brush manually, making cleaning easier and faster, especially in confined spaces.

Benefits of the Cougartron FL20 Fluid Feed System:

1. Integrated Design: Combines the machine, pump, and fluid container, creating a compact, transportable unit.
2. Controlled Fluid Flow: Automatically regulates fluid application, providing continuous cleaning without interruptions.

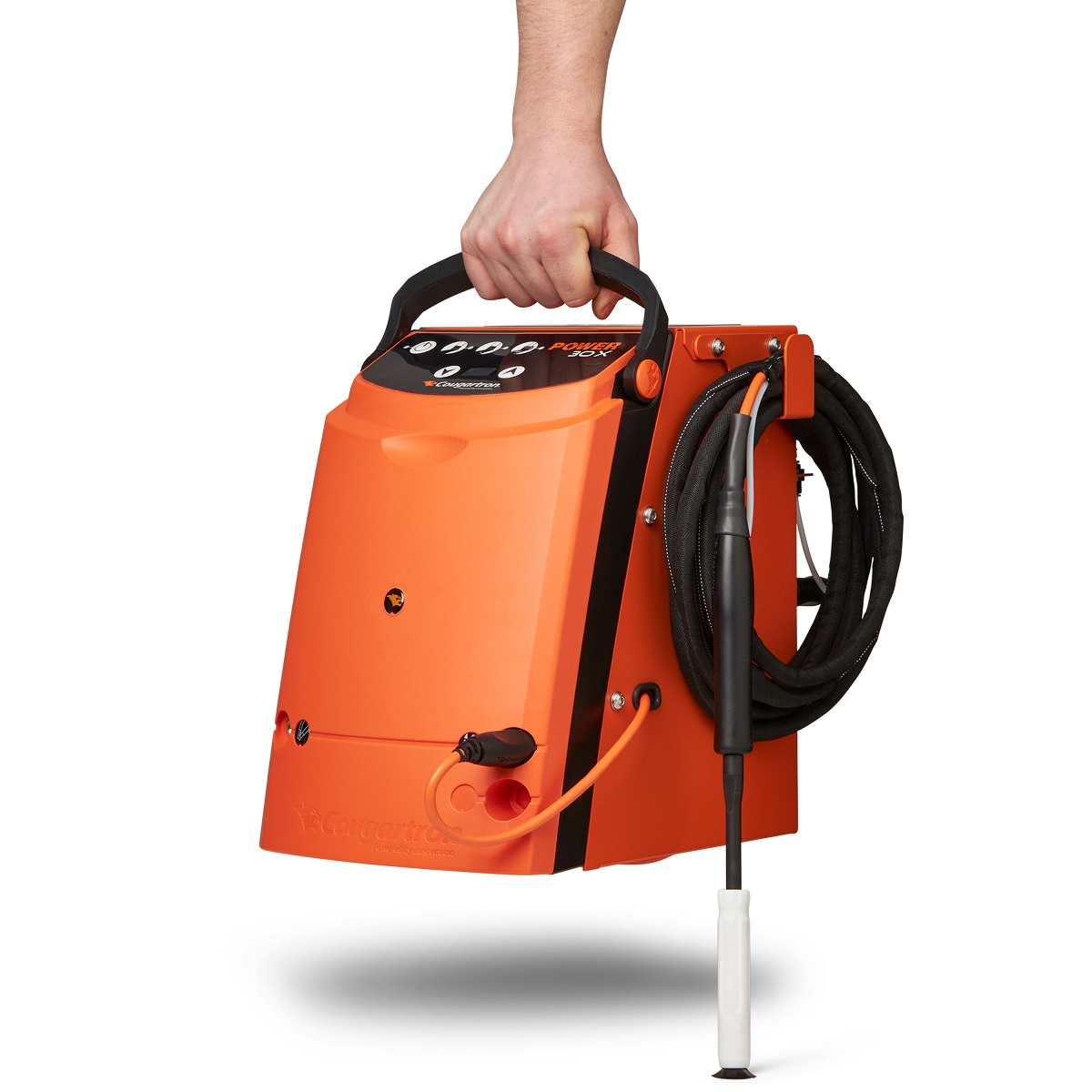

3. Compact and Portable: Ideal for tight spaces or elevated locations, thanks to its single-handle design.
4. Reduced Maintenance: Equipped with a priming function to remove air from the tubing, ensuring smooth fluid flow with each use.

The FL20 is compatible with Cougartron weld cleaners under 80 amps output power, such as the Power, Power30, and ProPlus models. By consolidating components, the FL20 simplifies workspace setup and enhances productivity.

Download Data Sheet:FL1020-Data-sheet

Key Features:

• Automatic and Manual Fluid Control: Features three automatic fluid control modes and manual mode for precision cleaning.
• Integrated Control Panels: Manage both machine and fluid pump using a single power switch and easy-access controls.
• Priming and Rinsing Functions: Designed with priming and rinsing functions for easy setup and cleanup.

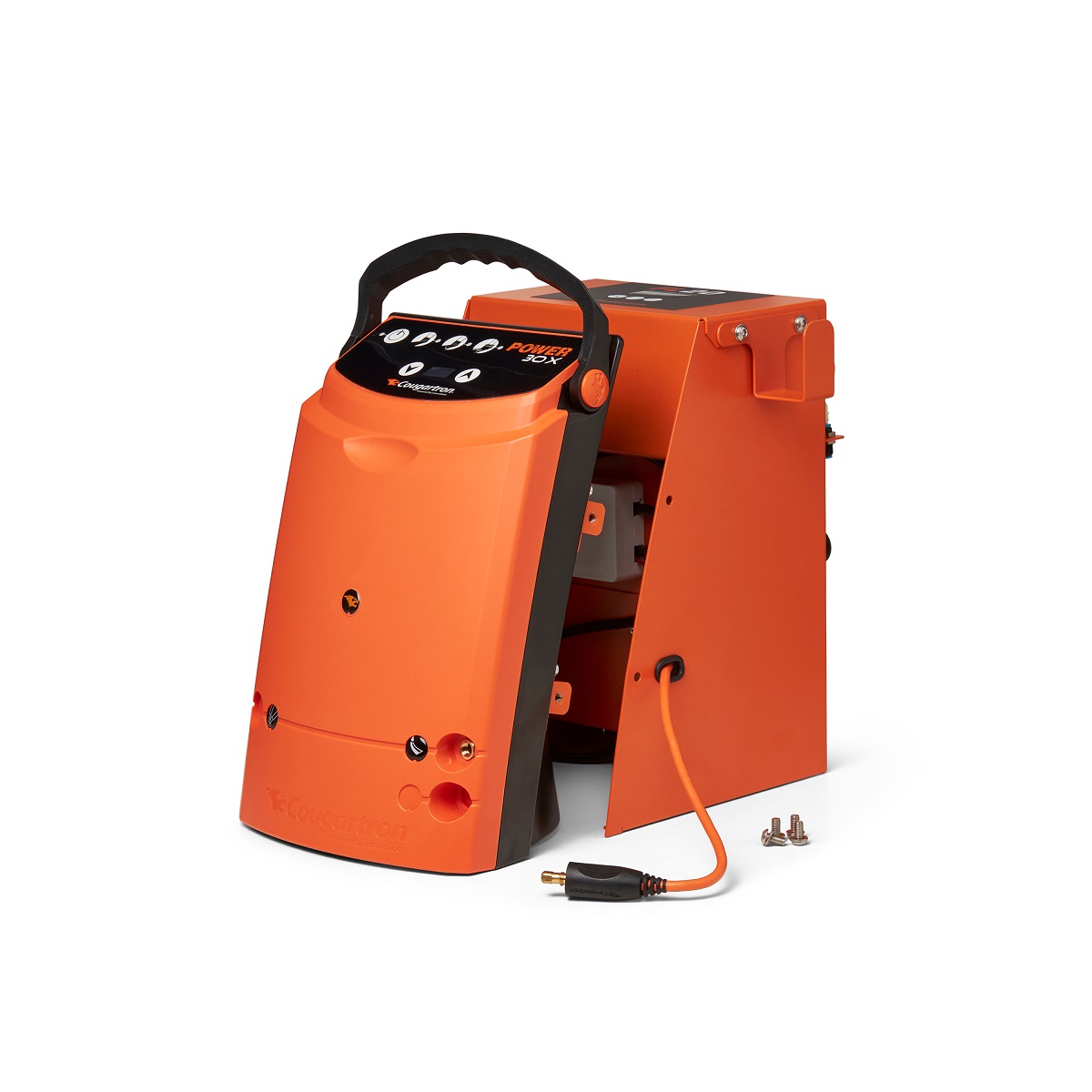

• Quick Attachment: Connects to the weld cleaner with just four screws, allowing for simple setup and efficient portability.

Technical Specifications:

• Power Supply: 110-230 V AC, 50/60Hz, 1A
• Amp Range Detection: 1-80A
• Voltage Range Detection: 1-30 V AC/DC
• Priming Function: Yes
• Automatic Pumping: Yes, with three modes
• Input Cable Length: 1.5m
• Output Cable Length: 4m
• Size (Machine Only): L 225mm, W 220mm, H 318mm
• Weight (Machine Only): 5.3 kg

Available Starter Sets for the FL20:

Choose from two starter sets:

• Starter Set A: Includes FL20 fluid feed unit, 4m lead with handle, fluid feed wand, microfiber cloth, and a mobile workstation.
• Starter Set B: Adds a mobile equipment stand and additional accessories for enhanced functionality.

Why Choose the Cougartron FL20 Fluid Feed System?

The Cougartron FL20 Fluid Feed System 110/230V is a top choice for professionals seeking fast, efficient weld cleaning. Its all-in-one design provides reliable fluid control in a compact, easy-to-transport system. Whether in the workshop or on-site, the FL20 offers convenience and efficiency.
